Webhooks

Configure webhooks to receive notifications from external services like GitHub, JIRA, and Google Calendar.

What are Webhooks?

Webhooks allow external services to send real-time notifications to Orient. When something happens (like a new PR, a calendar event, or a JIRA ticket update), Orient receives the notification and can forward it to WhatsApp or Slack.

---

Supported Sources

Source	Events
GitHub	Pull requests, issues, pushes, releases
JIRA	Issue created, updated, commented
Google Calendar	Event reminders, new events
Custom	Any JSON payload

---

Creating a Webhook

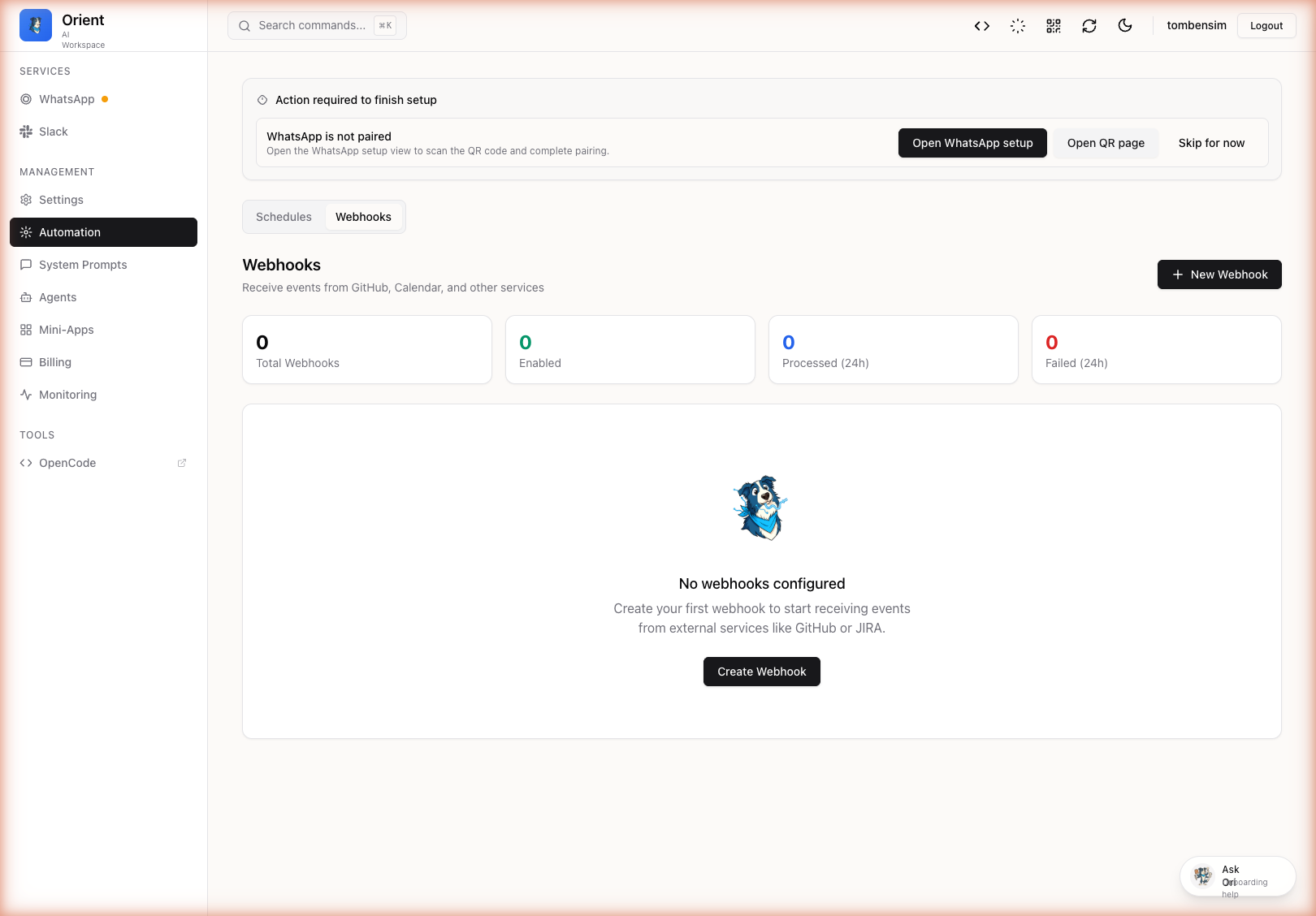

Step 1: Open the Dashboard

Navigate to Dashboard, then the Webhooks tab.

Step 2: Create New Webhook

1. Click Create Webhook
2. Fill in the configuration:

Field	Description
Name	Unique identifier (e.g., github-prs)
Description	What this webhook does
Source Type	GitHub, JIRA, Calendar, or Custom
Provider	Where to send notifications (WhatsApp or Slack)
Target	Phone number/group or Slack channel
Event Filter	Which events to listen for (optional)

Step 3: Copy the Webhook URL

After creating, you will receive a webhook URL like:

https://your-domain.com/api/webhooks/github-prs

And a secret token for verification.

---

Configuring GitHub Webhooks

1. Go to your GitHub repository
2. Navigate to Settings, then Webhooks
3. Click Add webhook
4. Configure:
   • Payload URL: Your Orient webhook URL
   • Content type: application/json
   • Secret: The token from Orient
   • Events: Choose which events to send

Recommended GitHub Events

• pull_request - New PRs, reviews, merges
• issues - New issues, comments
• push - Code pushes (use sparingly)
• release - New releases

---

Configuring JIRA Webhooks

1. Go to JIRA Settings
2. Navigate to System, then Webhooks
3. Click Create a WebHook
4. Configure:
   • URL: Your Orient webhook URL
   • Events: Issue created, updated, etc.

---

Message Templates

Customize how webhook notifications appear using Handlebars templates:

New PR:
{{pull_request.title}}
Author:
{{pull_request.user.login}}
URL:
{{pull_request.html_url}}

Available Variables

Variables depend on the source. Common ones include:

GitHub PR:

• {{pull_request.title}}
• {{pull_request.user.login}}
• {{pull_request.html_url}}
• {{action}} (opened, closed, merged)

JIRA Issue:

• {{issue.key}}
• {{issue.fields.summary}}
• {{issue.fields.assignee.displayName}}

---

Webhook Events

View recent webhook events in the Dashboard:

1. Go to Webhooks tab
2. Click on a webhook to see its event history
3. View payload, status, and any errors

---

Security

Signature Verification

Orient verifies webhook signatures to ensure requests are authentic:

• GitHub: Uses X-Hub-Signature-256 header with HMAC-SHA256
• JIRA: Uses custom header verification
• Custom: Configure your own signature header

Best Practices

1. Always use HTTPS in production
2. Keep webhook tokens secret
3. Use event filters to reduce noise
4. Monitor webhook events for failures

---

Troubleshooting

Problem	Solution
Webhook not receiving events	Check the URL is correct and publicly accessible
Signature verification failed	Ensure the secret token matches
Events filtered out	Check your event filter configuration
Messages not sending	Verify the target WhatsApp/Slack channel has permissions

Next Steps

• Configure secrets for API keys
• Set up scheduled messages
• Learn about chatting with the AI
